Weigh-in-motion (WIM)

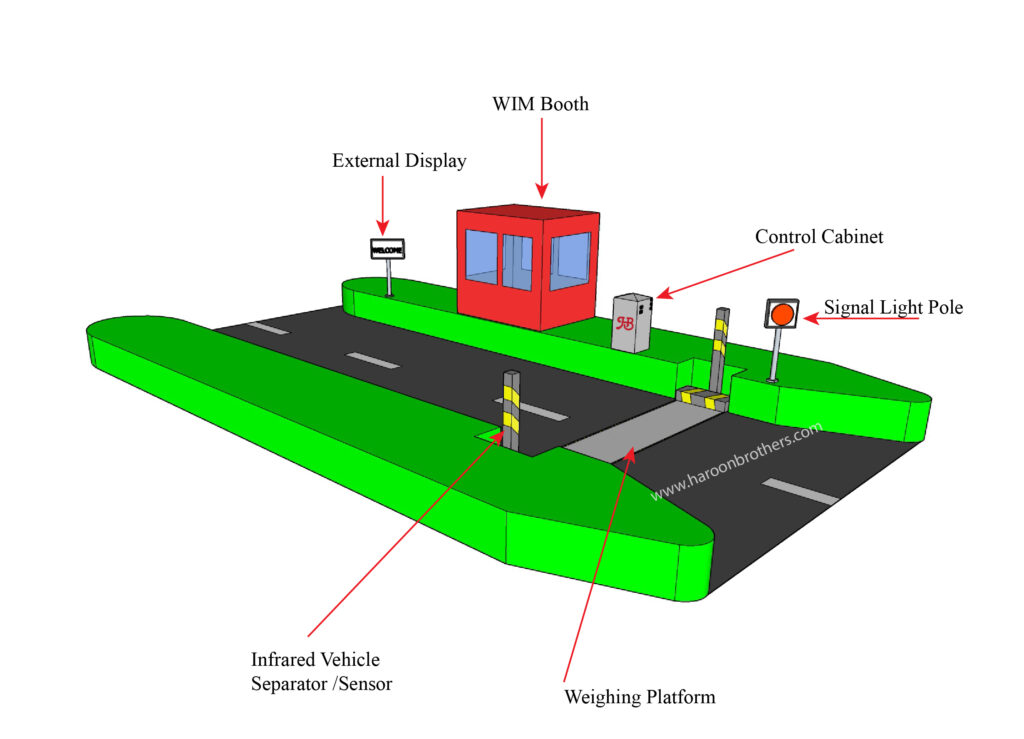

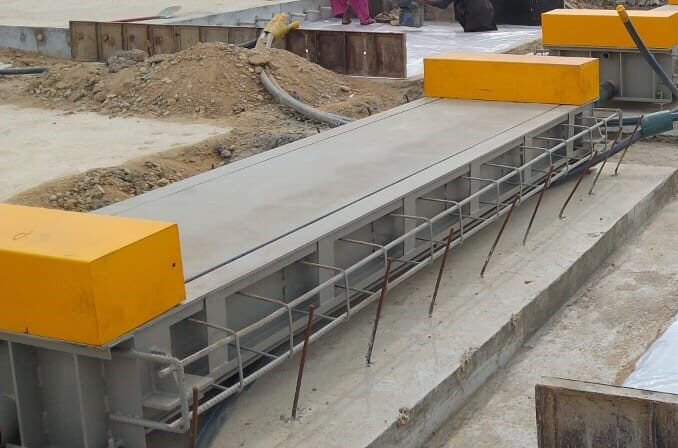

Weigh-in-Motion (WIM) systems measure Gross Vehicle Weights (GVW) and axle spaces of vehicles on highways at a free-flow traffic speed, and thus reduce traffic delays. The product designs special cover plate, it is very convenient for installment, repairment, maintance. The indicator could shows axis weight and the whole vehicle weight.
- Speed: <=5km/h
- Static accuracy: III class
- Dynamic accuracy: exceed 1/200
- Platform size: Single axle: 3.2mX0.8m(widthxlenght)
- Double axle: 3.2mX2.2m(widthxlenght)
- Max. Cap.: Single axle:30T
- Double axle: 50T
Piezoelectric Weigh-in-motion systems
